MC380X
MC380X Cone Module takes performance and versatility to the next level. Equipped with the proven MVP380X cone crusher, it delivers exceptional productivity and ease of operation.
MC1150
Cone Crusher Module

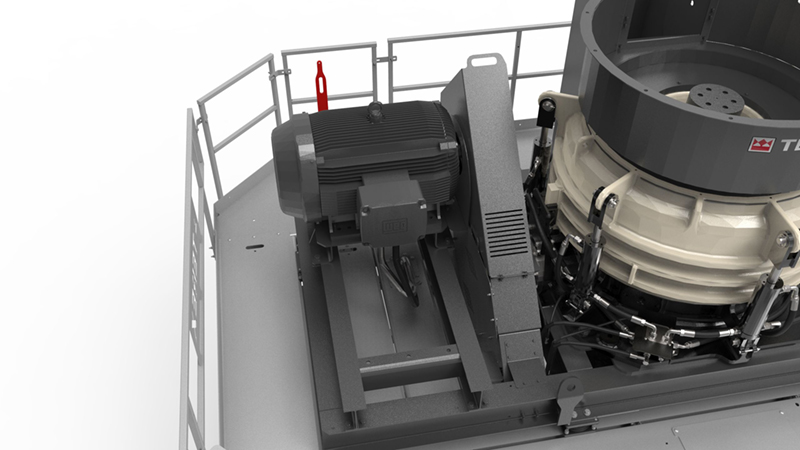

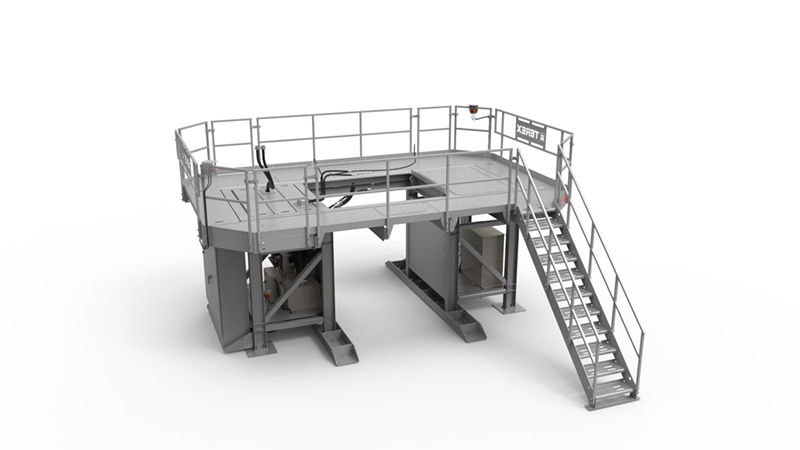

The Cedarapids® MC1150 Modular Cone Crusher is designed around our proven, high-performance TC1150 Cone Crusher, featured on an easy-to-assemble, galvanized modular frame. It includes a 45” (1150mm) cone head diameter, a one-piece upper frame, and a no-hit concave design for improved durability and performance. The new mantle liner retention system, greater tramp clearance, and increased clamp hold-down pressure enhance reliability and crushing efficiency. Options include an anti-spin device and upgraded platform offering wider walkways plus easier maintenance access.
| Specification | Value |
|---|---|
| Weight | 52,150 lbs / 23,654 kg |
| Working Dimensions | 21'11"x23'1"x14'10" (LxWxH) / 6688x7044x4527 mm (LxWxH) |
| Motor Size | 300 hp / 225 kW |
| Capacity | 280-327 tph / 308-360 mtph |
- Overflow chute
- Electrical switch gear panel
- Off plant conveyor starter kit
- Ultrasonic level control
- Operator working light kit
- Cone feed camera
Image and Video Gallery
Related Products
-
![MC380X_thumbnail]()
-
![MC1300_thumbnail]()

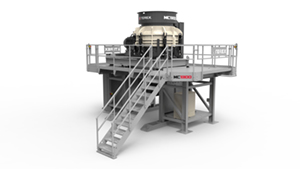

MC1300
The MC1300 Cone Module features a 51” cone with short and long throw options, an all-roller bearing design, and a modular, container-friendly setup for fast installation and efficient global transport.
-
![Cedarapids_Modular_MC1000_Cone_Crushing_Struture]()
MC1000
The Cedarapids® MC1000 Modular Cone Crusher delivers efficient, continuous crushing integration with existing plant configurations.
-
![MC320 cone module]()
MC320
MC320 Cone Module offers a versatile, all-electric crushing solution with quick setup and efficient performance. It features the TG320 or optional TGS320 cone on a universal base structure, compatible with MC a...
-
![MC450X cone module]()

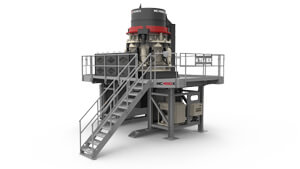

MC450X
The MC450X Cone Module, our largest to date, features the MVP450X cone crusher for superior tonnage, efficiency, and flexibility, with a bolt-together design for quick assembly and easy transport.
