MC320
Cone Crusher Module

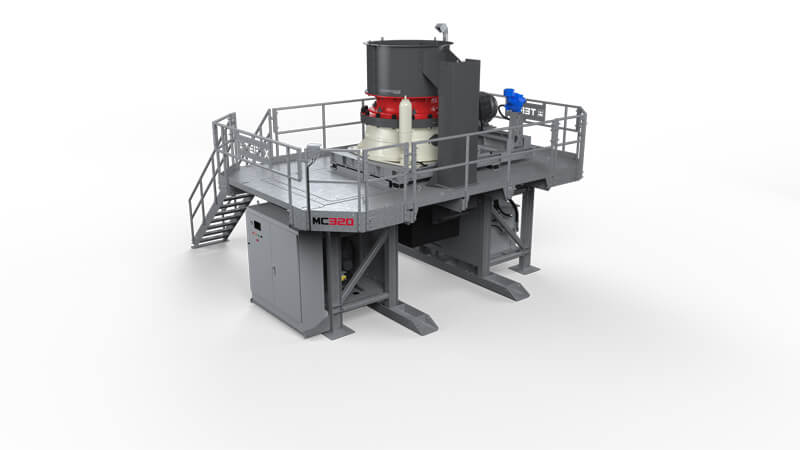

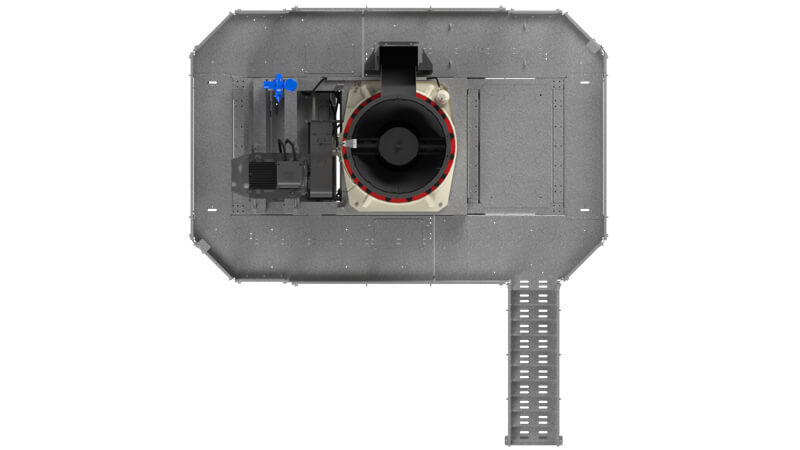

The Cedarapids MC320 Cone Module offers a versatile, all-electric crushing solution with quick setup and efficient performance. It features the TG320 or optional TGS320 cone on a universal base structure, compatible with MC and MV Series modular lines. Designed for easy transport in standard containers, it assembles quickly with basic tools and minimal wiring.
Built with a galvanized steel structure, the MC320 Modular Cone structure ensures safety with oversized walkways, repositionable stairs, and four conveniently placed emergency stops. Standard crusher controls included, come with optional upgrades like the CCM switchgear panel, an overflow chute, and an off-plant conveyor starter kit.
| Specification | Value |
|---|---|
| Weight | 61,510 lb (with TG320) / 66,360 lb (TGS320) / 27,900 kg (with TG320) / 30,100 kg (with TGS320) |
| Working Dimensions | 21'11" x 14'7" x 14'10" (LxWxH) / 6688x4448x4819 mm(LxWxH) |
| Motor Size | 300 hp / 225 kW |
| Capacity | 419-452 tph / 380-410 mtph |
Featuring a TG320 Cone Weighs: 61,510 lb (with TG320) / 27,900 kg (with TG320)
Featuring a TGS320 Cone Weighs: 66,360 lb (TGS320) / 30,100 kg (with TGS320)
