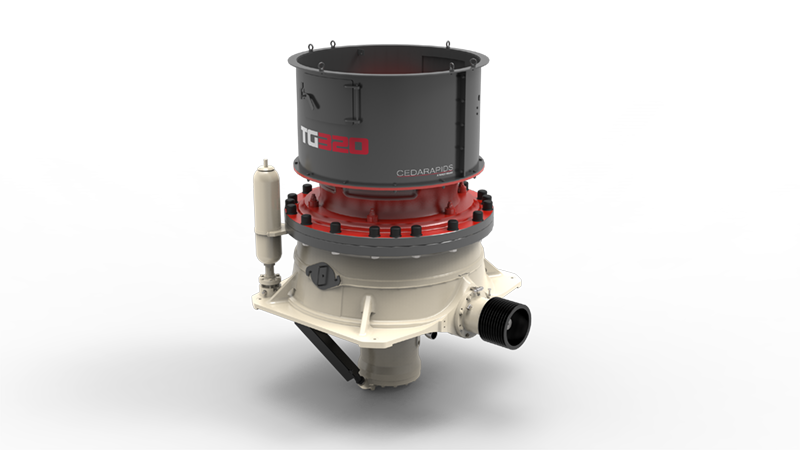

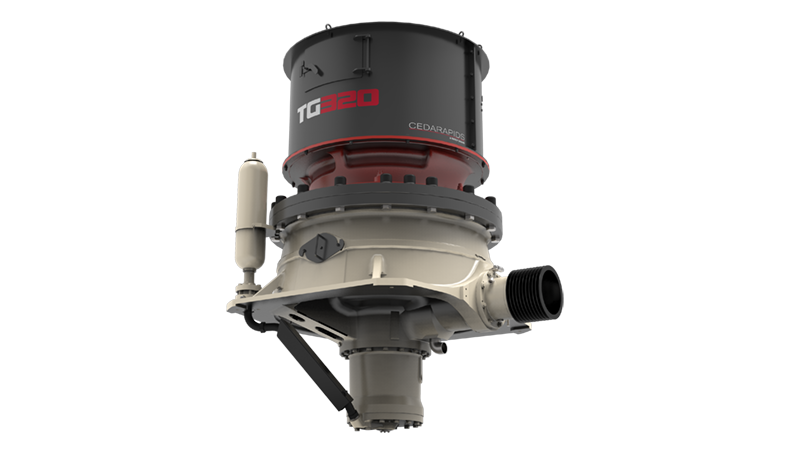

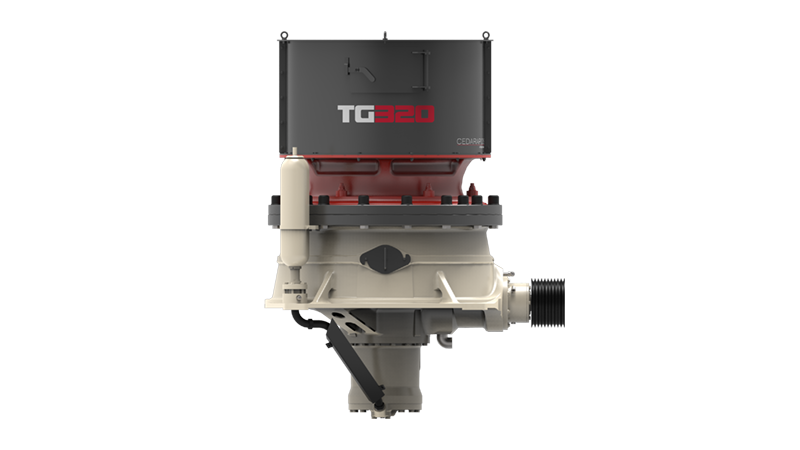

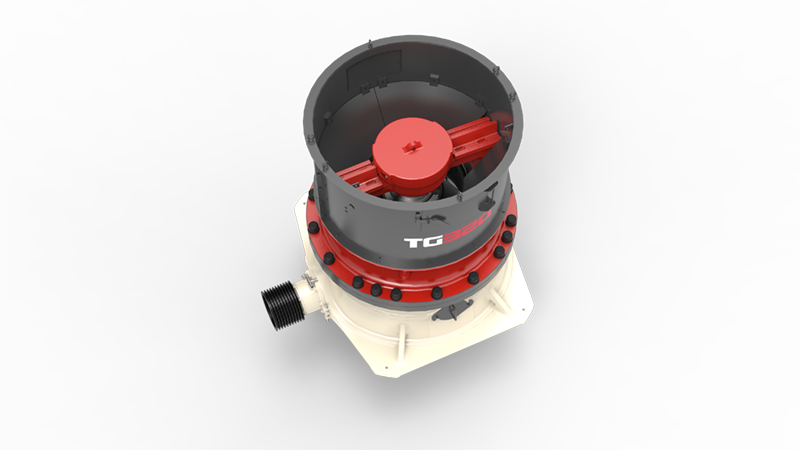

TG320
Cone Crusher
The Cedarapids TG Series TG320 Cone Crusher delivers 335 hp of reliable performance with versatile configurations for secondary to fine crushing. The advanced automation control system, fitted as standard
on all TG Series Cones, improves performance and cone
safety. The user-friendly interface and advanced
technology of the control system will continuously monitor
the cone’s operational parameters and make the necessary
adjustments to ensure consistent peak performance.
| Specification | Value |
|---|---|
| Motor Size | 335 hp / 250 kW |
| Max Feed Size | 7 1/2" / 190 mm |
| Weight | 33,069 lbs / 15,000 kg |
| CSS Range | 5/16"-1 1/2" / 8-38 mm |
| Max Capacity | 419-452 tph / 380-410 mtph |
