TG1020
Cone Crusher

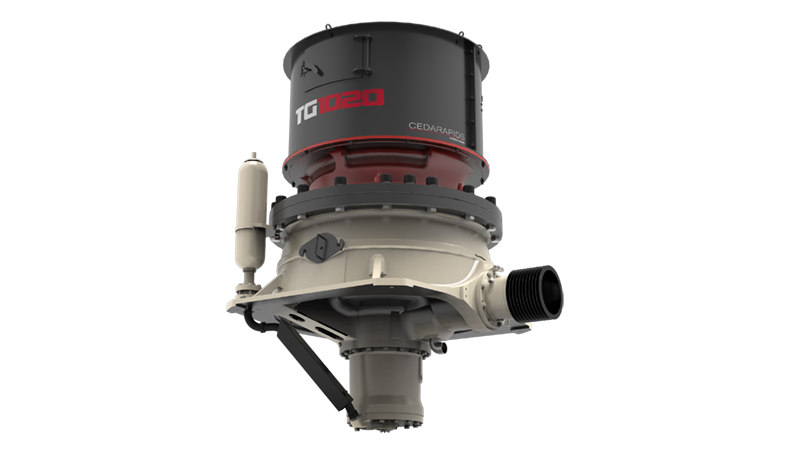

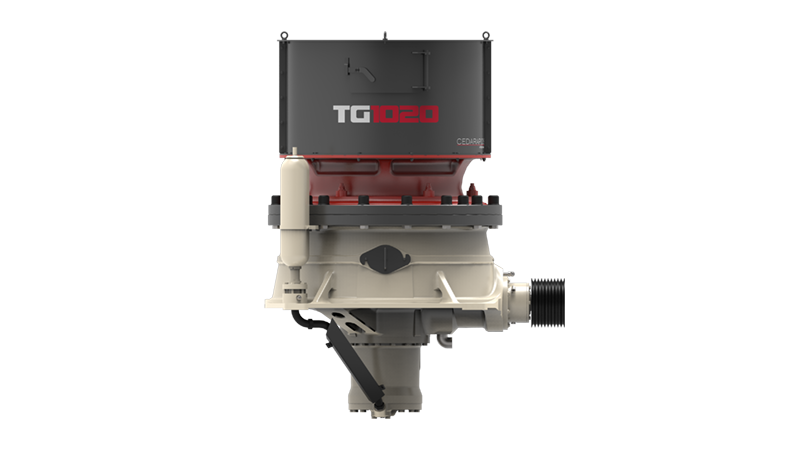

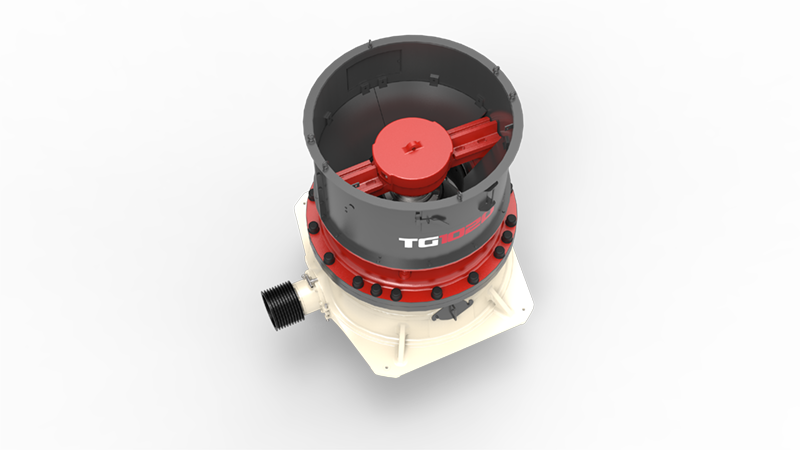

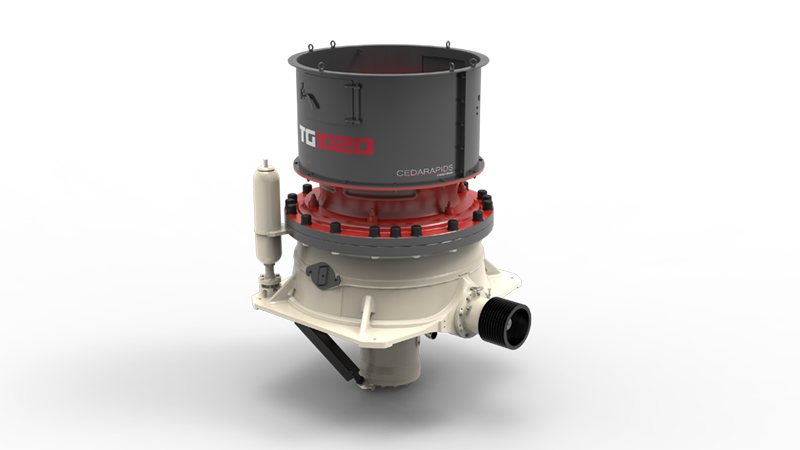

The Cedarapids TG1020 Cone Crusher is the most powerful model in the Bronze Bushing TG Series, offering an impressive 1006 hp and unmatched application flexibility. Designed to handle everything from coarse secondary to fine quaternary crushing, the TG1020 delivers superior cubical product shape and industry-leading cost-per-ton efficiency.
Built with versatility in mind, the TG1020 features interchangeable crushing cavities and adjustable eccentric throws to tailor performance to your specific operation. Standard advanced automation includes precision closed-side setting (CSS) control—adjustable even under load—as well as real-time monitoring and optimized power management for consistent, efficient output and extended wear life.
| Specification | Value |
|---|---|
| Motor Size | 1006 hp / 750 kW |
| Max Feed Size | 1' 2" / 355 mm |
| Weight | 169,756 lbs / 77,000 kg |
| CSS Range | 1/2"-2 3/4" / 13-70 mm |
| Max Capacity | 2315-2535 tph / 2100-2300 mtph |
